6250LD 600 Monitored Maglock
Indoor EM Locks
Enquire

600 Monitored Maglock

6250LD · 12/24 VDC

600 LBS

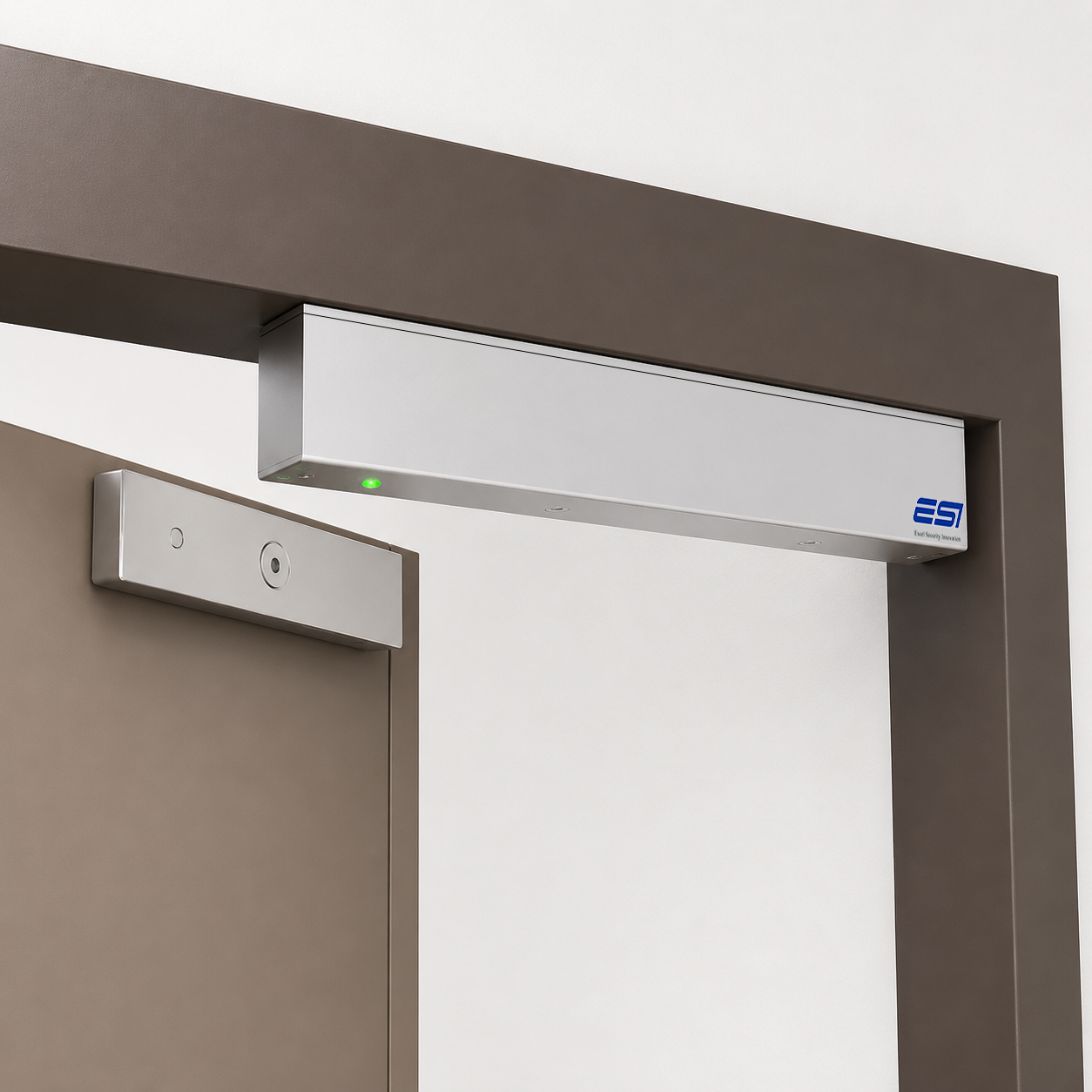

600 single monitored electromagnetic lock with 275 kg holding force, ideal for most indoor installations. Equipped with LED lock status indication and relay outputs for remote signalling.

Life-safety applications · Zero residual magnetism · Low energy consumption · 12/24 VDC selectable · MOV surge & spike protection
Download datasheet (PDF) Installation guide (PDF)
Specifications
Holding ForceUp to 600lbs (275kg)
Lock Status MonitoringYes (LED Indicator)
Current / Voltage12VDC: 480mA +/-10%; 24VDC: 240mA +/-10%
Weight (approx)2kg
HousingAnodized Aluminium
Operating Temperature-10 ~ +55 C
Operating Humidity0 ~ 95% (non-condensing)
Dimensions
Maglock (L x W x H)250 x 48 x 25 mm
Armature Plate (L x W x H)180 x 38 x 11 mm
